Billing export and budget alerting

Lab Overview

The problem. Five weeks of this lab claimed to cost approximately nothing, and not one of those claims could be checked. A cost figure you cannot query is an assertion.

Objective. Make spend queryable in BigQuery, and give the existing budget a programmatic notification path so an alert can reach something other than an inbox.

Expected outcome. A SQL-answerable cost history, a budget that publishes to Pub/Sub, and a measured total for every prior week.

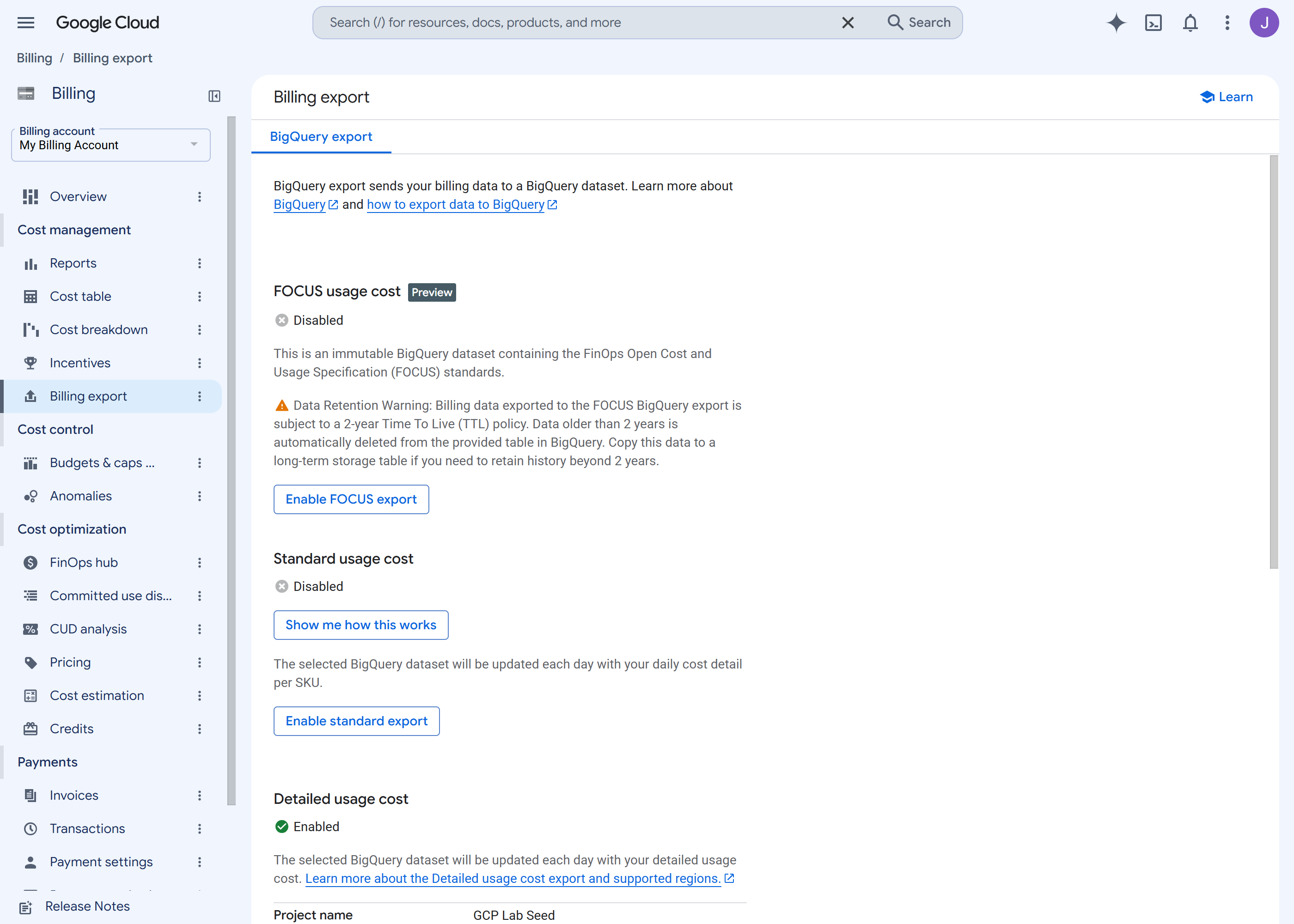

What actually happened first: the export was already running. A detailed usage cost export had been landing in the seed project since 1 July, unqueried, for three months. The week's premise was false before it was written.

Cloud Services and Concepts

Two concepts to carry into the rest. First, billing is orthogonal to the resource hierarchy: a billing account is not a parent of anything, so cost separation comes from labels and per-project budgets rather than from folders. Second, a budget alerts, it does not cap — spending continues past the threshold. Spend caps do now exist (Preview, July 2026) but cover only Gemini API, Agent Platform, Cloud Run and Cloud Run functions, none of which this lab runs.

Architecture and Workflow

The flow

1. Check what already exists. In this organization that answered the week before it started: an export had been running for three months.
2. Create a BigQuery dataset for pricing data and a Pub/Sub topic for budget events.
3. Write a project-scoped exception to Week 03's domain restricted sharing constraint, and wait for it to propagate.
4. Attach the topic to the budget, which makes Cloud Billing write its own service agent onto the topic as publisher.
5. Configure the export link itself in the console — there is no API for it.
6. Query the export and produce a measured cost figure for every prior week.

Two decisions worth naming

The exception is project-scoped, not organization-wide. Relaxing a security control everywhere to make one budget work would trade a real guardrail for a notification. The override names one project, and the lab guide says to review it.

The pre-existing export was left where it was. Re-pointing an export strands its history — the old table stops receiving rows and the new dataset backfills at most a month. Consolidating would have destroyed three months of the only cost data the lab had.

Prerequisites

• A billing account, and someone with roles/billing.admin — the Workspace account cannot grant billing-account roles at all.
• roles/orgpolicy.policyAdmin at the organization, for the scoped exception.
• roles/billing.costsManager to manage budgets, and roles/billing.viewer to configure an export — billing.accounts.getPricing lives only in viewer and admin.
• Week 03's domain restriction in place, or the exception has nothing to except.
• Terraform 1.9+ with hashicorp/google ~> 6.0.

The exact permission split, and the REST workaround for a broken gcloud command, are in the lab guide.

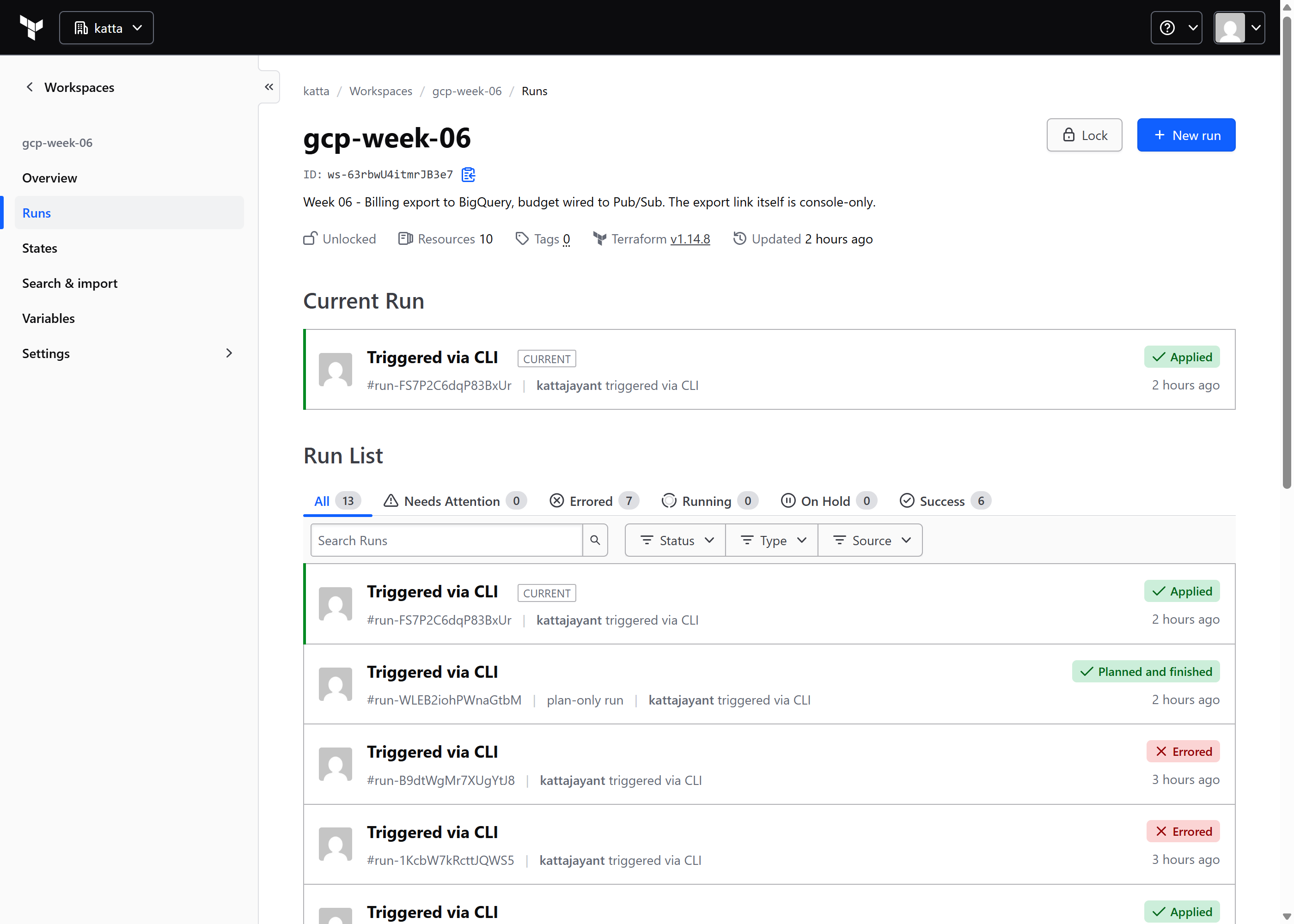

Implementation

Seven resources and one console step. Commands are in the lab guide.

Step 1 — Ask what already exists

Why: because the week's premise might be wrong. Here it was.

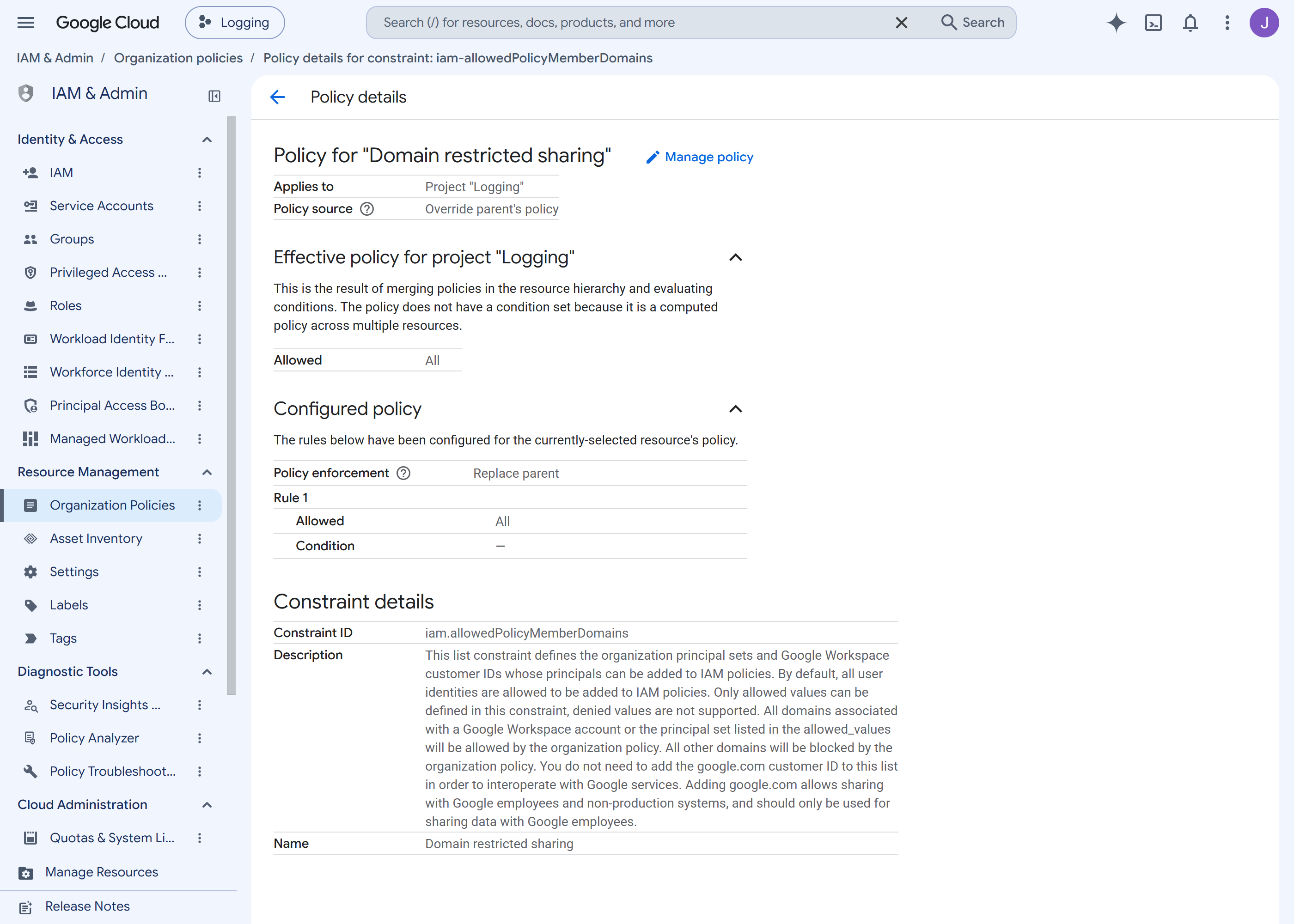

Step 2 — Scope an exception, then wait

Why: attaching a topic to a budget makes Cloud Billing write its own service agent onto the topic. Week 03's iam.allowedPolicyMemberDomains refuses that, and the API says only Error 400: Precondition check failed.

Action: a project-scoped override plus a 120-second time_sleep, because org policy changes take 75–108 seconds to take effect in either direction.

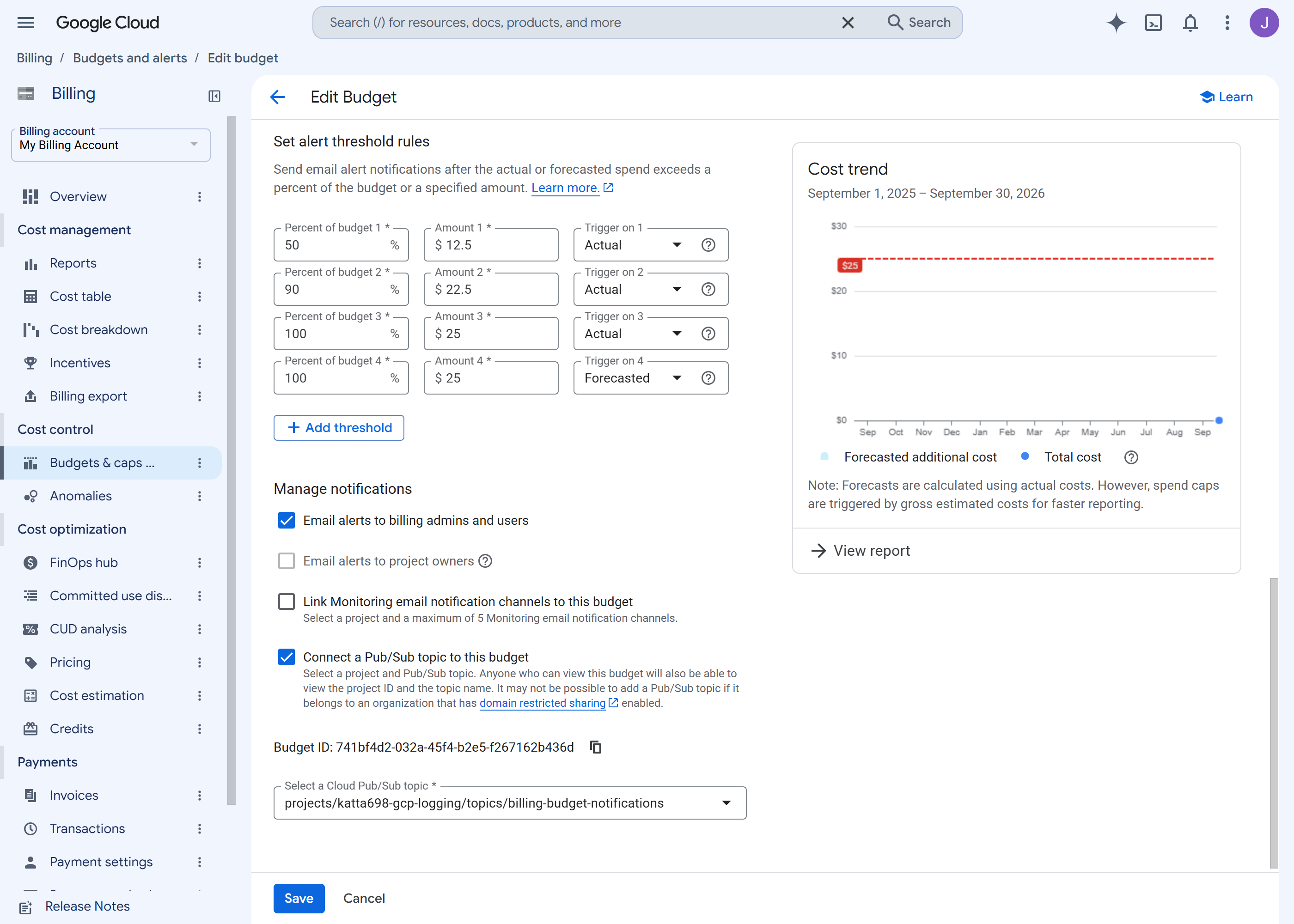

Step 3 — Attach the topic to the budget

Step 4 — Configure the export link, by hand

Why by hand: there is no Terraform resource, and the form cannot be automated. Playwright sets project and dataset correctly and the button transitions, but no save request is ever issued. Treat it as human-only.

Validation and Evidence

The headline result is row three. $0.006 across four months is the first measured cost figure in this lab, and it retroactively makes every previous week's "$0" claim checkable instead of asserted. Row seven is the honest gap: the notification path is configured and the publisher binding exists, but no threshold was ever crossed, so no message has been observed end to end.

Security and Cost

Security decisions

Cost

$0 for what this week adds. The export is free, the budget is free, and the BigQuery storage is kilobytes. $0.006 total for the lab since 1 July — measured from the export itself, which is the whole point of the week.

Budgets alert; they do not cap. Spend caps shipped in Preview on 27 July 2026 and genuinely pause services, but cover only Gemini API, Gemini Enterprise Agent Platform, Cloud Run and Cloud Run functions. Compute Engine, Cloud Storage and BigQuery are not eligible, so for this lab the accurate sentence is "GCP can now cap, on four services, none of which we run".

Troubleshooting and Lessons

Four words and no resource

Problem: attaching the topic to the budget failed with Error 400: Precondition check failed. No resource, no policy, no details array.

Root cause: Week 03's domain restricted sharing constraint, refusing Cloud Billing's own Google-owned service agent.

Resolution: diagnosed by elimination, not by re-reading documentation — a bogus topic gave NOT_FOUND so resolution worked; two different budgets failed identically so it was not the budget; testIamPermissions confirmed the caller held setIamPolicy. Identical failure as the pipeline identity and as a human organization admin pointed at an organization-level cause.

Lesson: when an error names nothing, stop reading and start eliminating. The console, incidentally, stated the real cause in full on the budget's own page — the API did not.

The week's premise was already false

Problem: the lab was written to solve "there is no queryable cost source". There had been one for three months.

Resolution: keep it, query it, and report the real number.

Lesson: read live state before believing a week's own premise, not just its configuration. The config was accurate; the premise was not.

A form that cannot be automated

Problem: the export link has no Terraform resource, and browser automation sets every field correctly without ever issuing a save.

Lesson: some surfaces are human-only. Recognising one early is cheaper than proving it for an hour.

Cleanup and Key Takeaways

Cleanup

This week is exempt from teardown, deliberately. scripts/cleanup.sh does not destroy the export or the budget. A cost guardrail that exists only during the week it was built is not a guardrail — and every later week's $0 claim is provable only because this export keeps running.

If you do tear it down, remove the budget first and the policy exception last: the exception is what permits the budget's notification binding to exist. Commands are in the lab guide.

Ongoing charges: effectively none — kilobytes of BigQuery storage.

Key takeaways

1. Read live state before trusting a week's premise. The export had been running for three months. The configuration was right; the assumption was wrong.
2. An opaque error is diagnosed by elimination. "Precondition check failed" names nothing — a bogus resource, a second budget and a permissions probe named it between them.
3. Google's services write as themselves. A budget's notification path requires Cloud Billing's own service agent on your topic, which a domain restriction will refuse.
4. Never write a service agent address from memory. Read it back from the IAM policy — an earlier draft guessed one that does not exist.
5. Budgets alert, they do not cap, and the spend caps that now exist cover four services this lab does not run.

References

• Lab guide — permission split, the exception, the console-only step
• Export billing data to BigQuery
• Budgets and alerts
• Programmatic budget notifications
• Source repository
