Week 7 — CI That Deploys to Azure With No Password Anywhere

Lab Overview

A CI pipeline that deploys to Azure without storing a credential. GitHub mints a short-lived token describing the run, Azure checks it against a trust configured once, and hands back an access token.

The point is not that the secret is well hidden. It is that no password is ever created, so there is nothing to leak, rotate, or find in a repo three years later.

Cloud Services and Concepts

Architecture and Workflow

Prerequisites

• Permissions: Contributor and User Access Administrator on the subscription. The lab grants Reader to the identity it creates, and Contributor cannot create role assignments.
• A GitHub repository you can run Actions in, and permission to add a workflow to it. The federated credential is pinned to one org, repo and branch, so you need to know all three before deploying.
• The GitHub CLI (gh), authenticated. Not optional: the subject claim must be read from GitHub, not constructed by hand. See Troubleshooting for what happens otherwise.
• Terraform ≥ 1.10 with azurerm 5.x. The workspace must be set to local execution — a new HCP workspace defaults to remote, and there is no Azure CLI on HCP's runners.
• One resource provider: Microsoft.ManagedIdentity, registered by the deploy script.
• No prior week is required. This one is depended on rather than depending: it is the identity later weeks would build in CI under.

Every variable — including the three GitHub ones with no defaults — is in the lab guide, which is the reproducible half of this write-up.

Implementation

1. The identity, and the trust that makes it usable

Four resources. The identity has to be user-assigned — federation does not work with a system-assigned identity, because there is no Azure resource here to own one. The workload runs on GitHub's machines.

resource "azurerm_user_assigned_identity" "ci" {
  name                = "id-wk07-github-ci-dev-scus-001"
  resource_group_name = azurerm_resource_group.identity.name
  location            = azurerm_resource_group.identity.location
}

resource "azurerm_federated_identity_credential" "main_branch" {
  name                      = "github-main"
  user_assigned_identity_id = azurerm_user_assigned_identity.ci.id

  audience = ["api://AzureADTokenExchange"]
  issuer   = "https://token.actions.githubusercontent.com"
  subject  = "${var.github_subject_prefix}:ref:refs/heads/main"
}

resource "azurerm_role_assignment" "ci_reader" {
  scope                = "/subscriptions/${var.subscription_id}"
  role_definition_name = "Reader"          # not Contributor
  principal_id         = azurerm_user_assigned_identity.ci.principal_id
}

subject is the security boundary, and it is exact-match, not a prefix. A different repo, or the same repo on a different branch, presents a different subject and is refused — which is why a fork raising a pull request cannot borrow this identity.

Reader, not Contributor. This workload reads. Granting more "so it works later" is how a CI identity quietly becomes the most powerful principal in a tenant.

State lives in HCP Terraform, and the workspace runs in local execution — HCP holds the state file, the apply runs here:

2. Deploying it

Terraform, state in HCP Terraform, apply running locally:

./scripts/deploy.sh      # reads the subject prefix from GitHub, then applies
./scripts/validate.sh    # 5 checks against the live identity
./scripts/cleanup.sh     # destroys it and verifies against Azure

The deploy prints three identifiers, and they go into GitHub as repository variables — Settings → Secrets and variables → Actions → Variables:

AZURE_CLIENT_ID   AZURE_TENANT_ID   AZURE_SUBSCRIPTION_ID

Variables, not secrets. They are identifiers; knowing them grants nothing without a token GitHub will only mint for this repo on this branch. Three variables and zero secrets is the whole week on one settings page.

3. What appeared in the portal

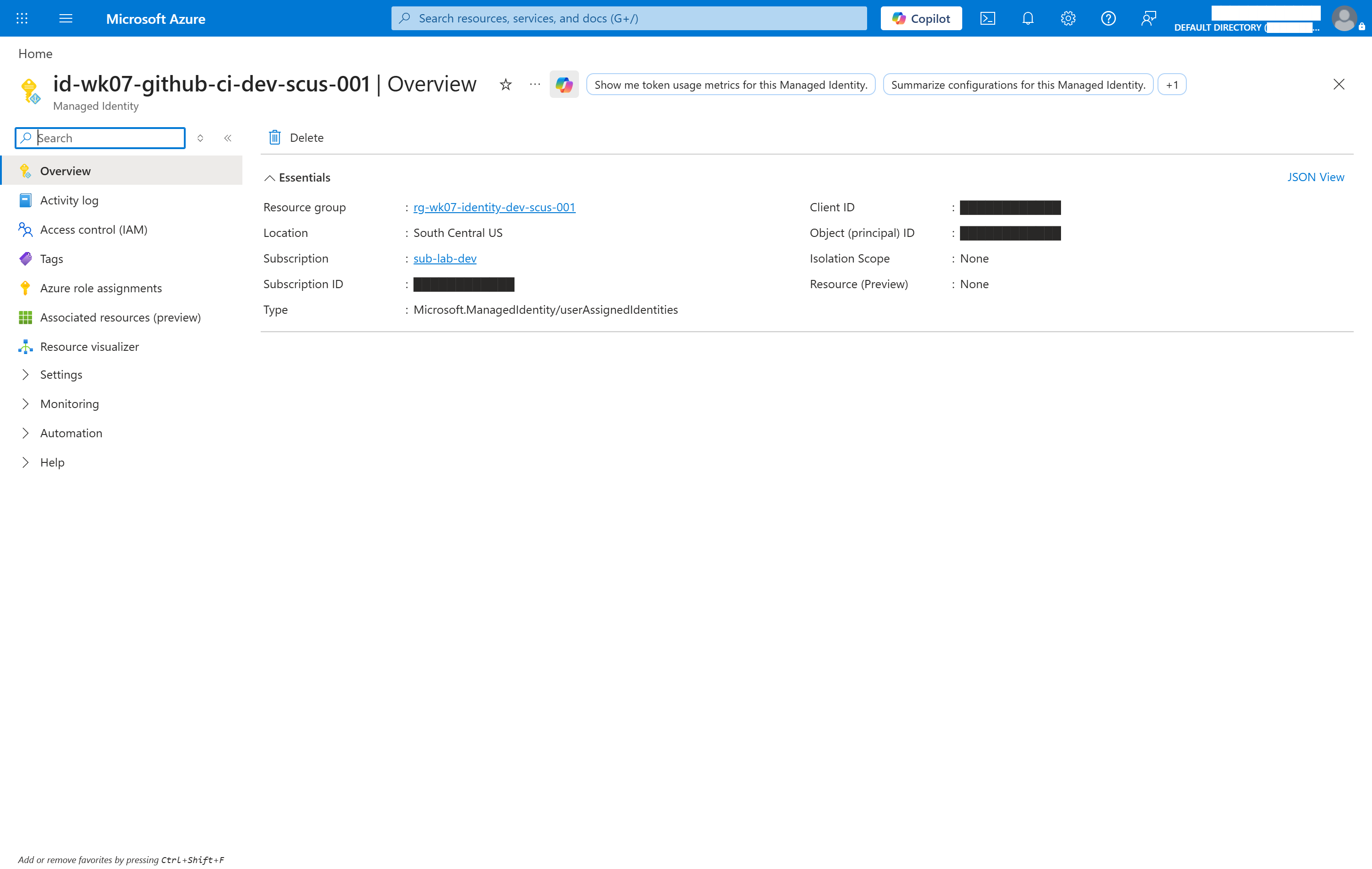

The identity, with no credential of any kind attached to it:

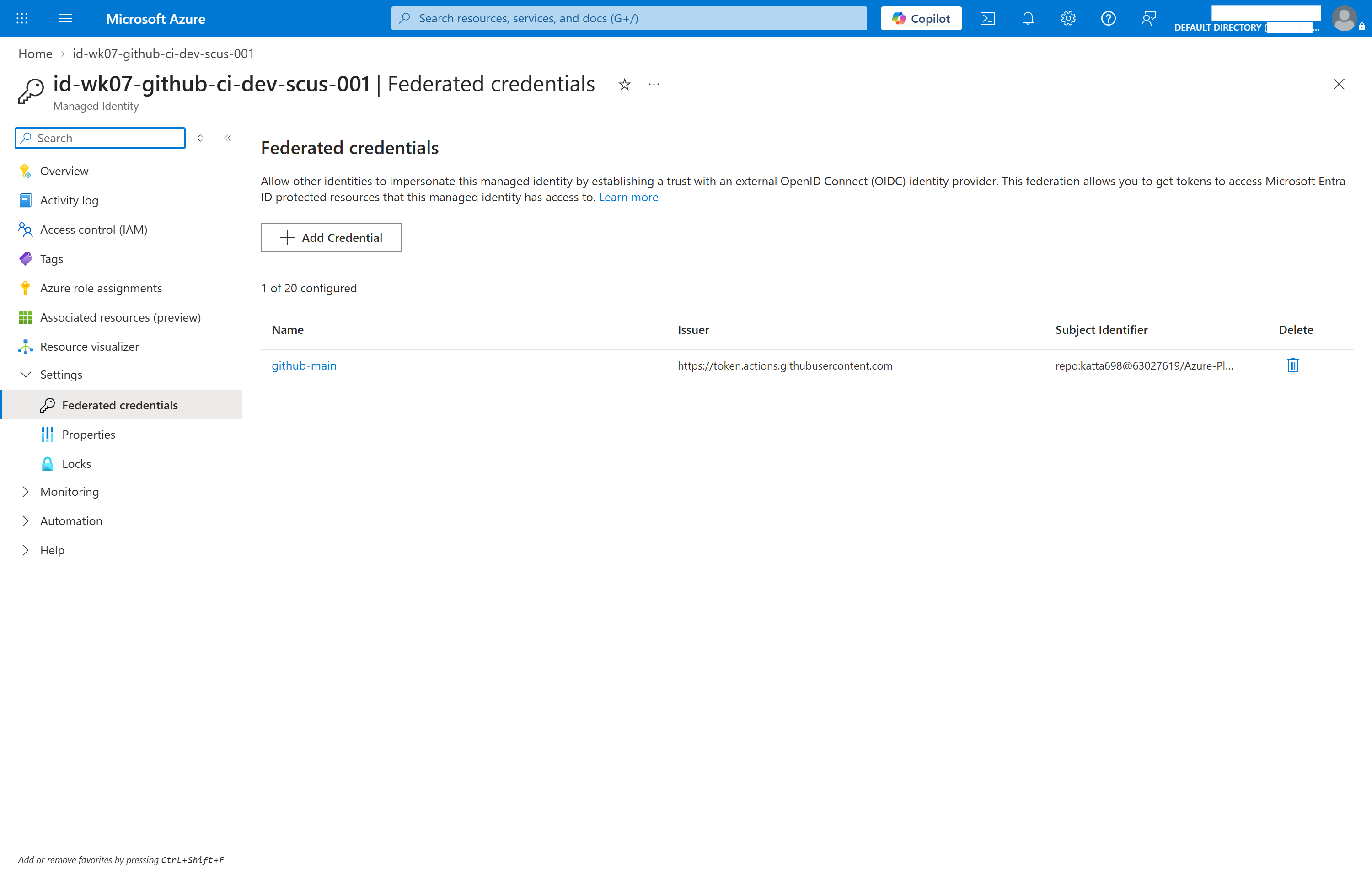

And the trust itself — one credential, GitHub as issuer, the subject carrying numeric IDs:

Validation and Evidence

A successful terraform apply proves four resources exist. It proves nothing about whether GitHub can actually authenticate with them, which is the entire claim of the week. The checks below are split accordingly: the first five run against Azure, and the last two run on a real GitHub runner.

The fourth row is the one that cannot be achieved by discipline. A managed identity cannot hold a password — the API has nowhere to put one. In an app registration, "no secret" is a rule somebody has to keep keeping.

What the checks print

What two of those checks print:

4. There is no secret to steal
   password credentials on the identity's service principal: 0
   RESULT: none - authentication is a federated token, minted per run

5. The role is Reader, and only Reader
   roles: Reader
   RESULT: Reader alone - it can look, and cannot change anything

── 5 passed, 0 failed ──

A managed identity cannot hold a password — the API has nowhere to put one. That is the difference from an app registration, where "no secret" is a discipline somebody has to keep.

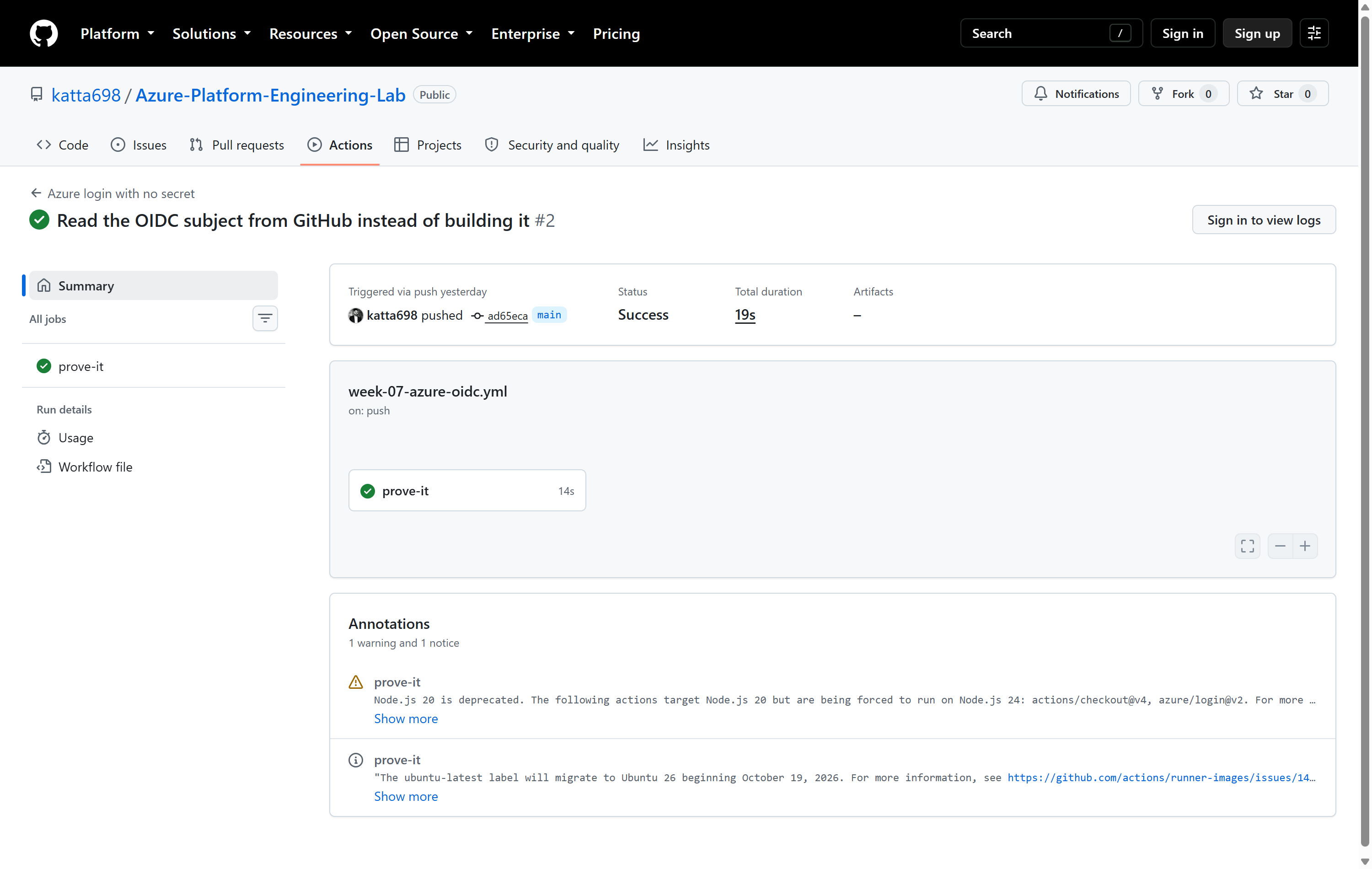

Then the workflow, on a real runner. GitHub Actions is what drives this, so the run page is the evidence that matters:

And its output:

client id  : f8bfdca3-...          <- a variable, not a secret
secrets    : none configured for this repo

── who am I ──
Subscription    Tenant
sub-lab-dev     29a908ac-...

── what can I see ──
rg-wk07-identity-dev-scus-001

── what I cannot do (Reader, deliberately) ──
refused, as designed - this identity reads and nothing more

The workflow asserts its own limit rather than assuming it: it attempts a resource group create and fails the build if that succeeds.

Security and Cost

Security

• No secret exists, rather than no secret being committed.
• Tokens are minted per run and expire with it — nothing to rotate.
• Trust is pinned to one repo and one branch, with immutable IDs so a rename cannot carry it.
• Reader only, asserted by the workflow rather than assumed.
• permissions: id-token: write is required, or GitHub never mints a token and the error points at Azure instead of at the workflow.

Cost

Managed identities, federated credentials and role assignments are all free. This week cost $0.00.

Troubleshooting and Lessons

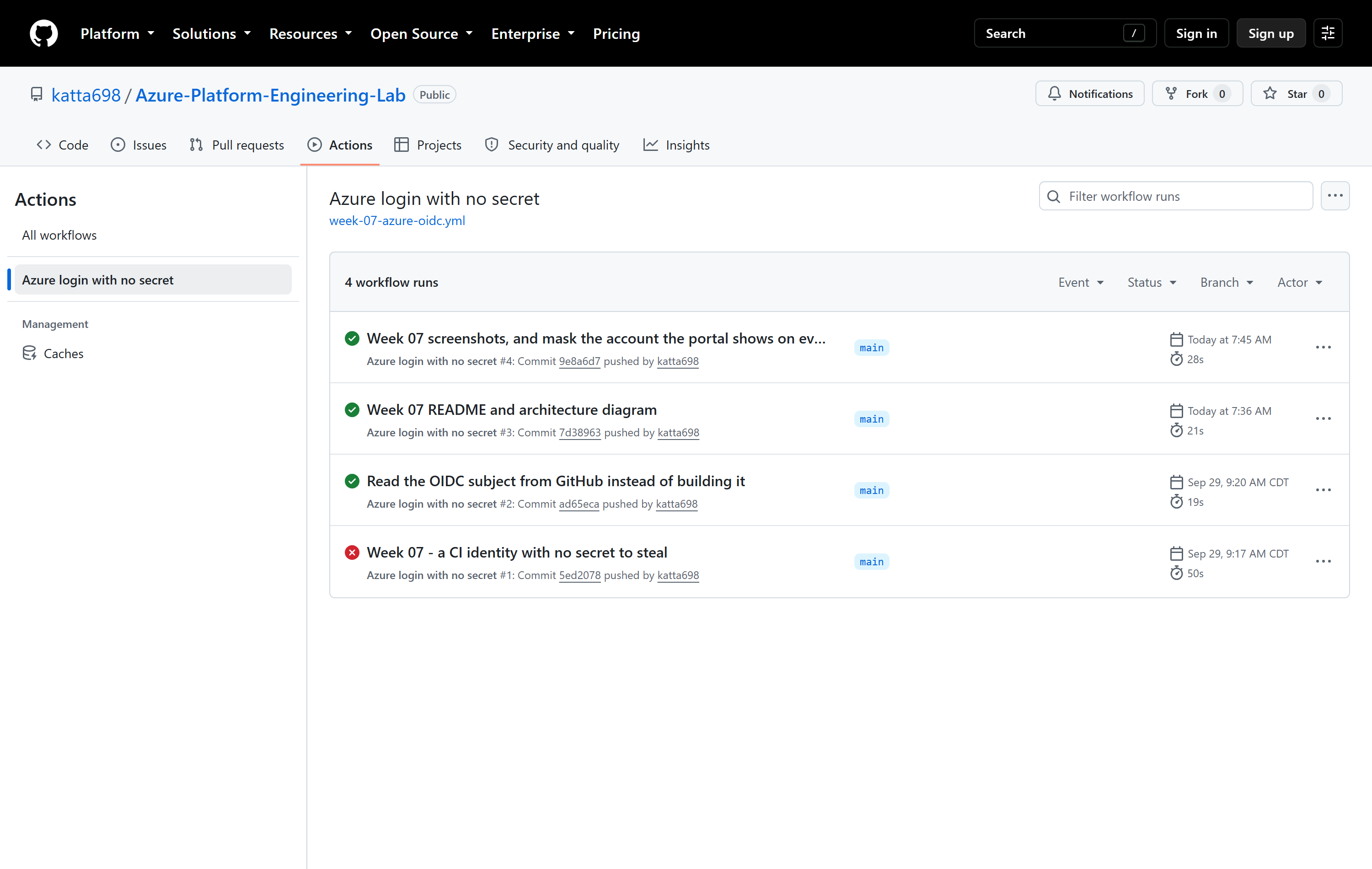

The first run failed at login, not at apply.

• Problem: Terraform applied cleanly and the workflow then failed authenticating, with AADSTS700213: No matching federated identity record found.
• Root cause: GitHub now defaults to immutable subject claims — the owner and repository each carry their numeric ID. A credential built from the documented repo:owner/repo form applies cleanly and matches nothing a runner actually presents.
• Resolution: read the subject from GitHub instead of constructing it.
• Lesson learned: a trust relationship has two ends, and only one of them is in your Terraform. The half you did not write is the half to go and read.

AADSTS700213: No matching federated identity record found for presented
assertion subject 'repo:katta698@63027619/Azure-Platform-Engineering-Lab@1342954118:ref:refs/heads/main'

That immutability is deliberate: renaming or transferring a repository no longer carries the Azure trust with it. The fix is to ask GitHub rather than assume:

gh api repos/{owner}/{repo}/actions/oidc/customization/sub --jq '.sub_claim_prefix'

A new HCP workspace defaults to remote execution. The plan ran on HCP's servers and failed with az: executable file not found in $PATH — which reads exactly like a local problem. There is no Azure CLI on HCP's runners and no credentials there either. Setting the workspace to local execution fixed it immediately.

azurerm 5.x changed the resource. azurerm_federated_identity_credential takes a single user_assigned_identity_id where 4.x took resource_group_name plus parent_id, so every example predating 5.0 fails on all three arguments at once.

Cleanup and Key Takeaways

Cleanup

cleanup.sh destroys all four resources and then checks Azure directly — 0 resource groups, 0 identities, 0 orphaned role assignments. Not trusted from an exit code.

One bug found doing it: deploy.sh had learned to pass the subject prefix and cleanup.sh had not, so the teardown failed with No value for required variable. Terraform wants every declared variable at destroy too — the worst place to discover a missing argument.

References

• Workload identity federation
• Authenticate to Azure from GitHub Actions by OpenID Connect
• Create trust between a user-assigned managed identity and an external IdP
• Week 7 code in the lab repository

Key takeaways

• "No secret" should be a property, not a discipline. A managed identity cannot hold a password. That is a stronger guarantee than remembering not to create one.
• Federation needs a user-assigned identity. System-assigned cannot do it, and the reason is structural rather than arbitrary.
• Ask GitHub for the subject. Immutable subject claims mean the documented format is no longer what runners send, and the mismatch only shows at login — long after a clean apply.
• Grant Reader and make the pipeline prove it. A test that asserts what CI cannot do is worth more than one that asserts what it can.
